The Range of FIBC bags

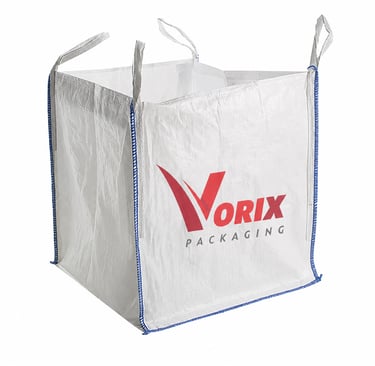

Vorix Packaging's U-Panel FIBC Bags are engineered for the safe and efficient handling of bulk materials, with load capacities ranging from 500 kg to 2000 kg and safety factors of 5:1 or 6:1. Available in various designs, including Builder Bags, Tunnel Lift Bags, and Corner Loop Bags, they can be customized with multiple top and bottom construction options.

Builder Bags are ideal for construction materials such as sand, gravel, and aggregates, while Tunnel Lift Bags enable faster forklift handling and reduced labor costs. These versatile bulk bags are widely used across the construction, chemical, food, pharmaceutical, and agricultural industries.

Technical Specifications:

SWL: 500 kg – 2000 kg
Safety Factor: 5:1 or 6:1
Fabric: Coated / Uncoated
Liner: Tubular / Shaped
Printing: Up to 4 Colors
Customizable Top & Bottom Options

U - PANEL (FIBC BAG)

Vorix Packaging's Circular FIBC Bags are manufactured from seamless circular woven fabric, offering excellent strength, durability, and cost-effective bulk packaging solutions. Ideal for industries such as construction, chemicals, agriculture, food, minerals, and industrial manufacturing, these bags ensure safe storage and transportation of bulk materials.

Available in Builder Bags, Tunnel Lift Bags, and Corner/Cross-Corner Loop designs, our Circular FIBC Bags can be customized with a variety of filling and discharge options to meet specific handling requirements.

Technical Specifications:

SWL: 500 kg – 2000 kg
Safety Factor: 5:1 or 6:1
Fabric: Coated / Uncoated PP Fabric
Liner: Tubular / Form-Fit Liners
Printing: Up to 4 Colors
Lifting: Standard, Corner, Cross-Corner & Tunnel Lift Loops
Customizable Top & Bottom Options

CIRCULAR (FIBC BAG)

Vorix Packaging's Q Bags, also known as Baffle Bags, are designed with internal polypropylene baffles sewn into each corner to maintain a square shape during filling, storage, and transportation. This innovative design prevents bulging, improves stability, and maximizes storage and shipping efficiency.

Key Benefits:

Up to 30% greater space utilization compared to standard FIBC bags
Enhanced stability and stackability for safer handling
Reduced spillage and improved warehouse organization
Maintains pallet dimensions for efficient transport and storage
Ideal for Food, Chemical, Pharmaceutical, and other high-value industries

Q BAGS / BAFFEL (FIBC BAG)

FOOD GRADE (FIBC BAG)

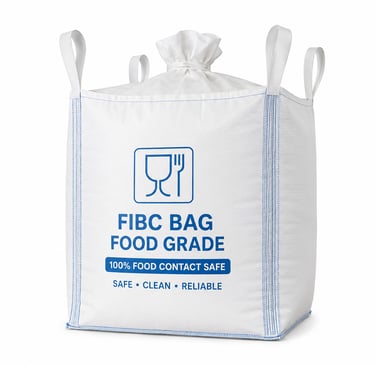

Vorix Packaging's Food Grade FIBC Bags are manufactured from 100% virgin polypropylene in controlled, hygienic environments to ensure the safe storage and transportation of food products. Designed to meet stringent quality and safety standards, these bags help protect contents from contamination, moisture, dust, and pests.

Key Features:

Suitable for direct food contact
Hygienic and contamination-free production
Available with liners and coated fabric options
Ideal for sugar, rice, grains, flour, salt, and other food products
Customizable filling and discharge configurations

Technical Specifications:

Capacity: 500 kg – 2000 kg
Safety Factor: 5:1 or 6:1
Fabric: Coated / Uncoated Virgin PP Fabric
Printing: Food-safe custom printing available
Top & Bottom: Multiple customizable options

UN CERTIFIED (FIBC BAG)

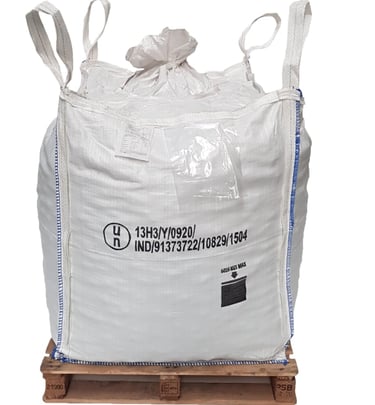

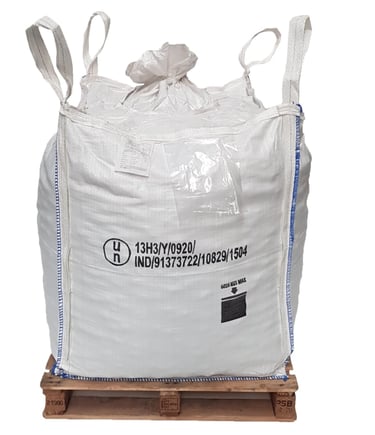

Vorix Packaging's UN Certified FIBC Bags are specifically designed for the safe transportation and handling of hazardous materials in compliance with international UN regulations. Manufactured and tested to stringent safety standards, these bags ensure reliable performance throughout the global supply chain.

Available UN Bag Types:

13H1: Uncoated woven polypropylene, without liner
13H2: Coated woven polypropylene, without liner
13H3: Uncoated woven polypropylene, with liner
13H4: Coated woven polypropylene, with liner

These bags are ideal for industries handling chemicals, hazardous powders, and other regulated materials requiring certified bulk packaging solutions.

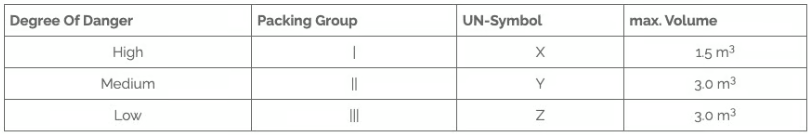

Hazard Level Classifications:

Each UN Bag is assigned a symbol and packing group based on the degree of danger of the material:

Unlike standard FIBCs, UN Bags are not classified by safety factor (e.g., 6:1). Instead, they follow Packing Group-based classifications defined under UN regulations.

UN Testing Standards:

To achieve UN certification, each bag undergoes strict testing at certified labs, including:

Top Lift Test
Drop Test
Stacking Test
Tear Test
Righting Test
Topple Test

A unique test certificate is issued only for bags that meet the required thresholds, and it is valid only for the specified product type and use case.

Available Options:

SWL Range: 500 kg to 1500 kg (1,100 lbs – 3,300 lbs)
Fabric: Coated / Uncoated
Liner: Tubular / Shaped
Printing: Up to 4 colors
Top & Bottom Construction: Multiple configurations available

VENTILATED (FIBC BAG)

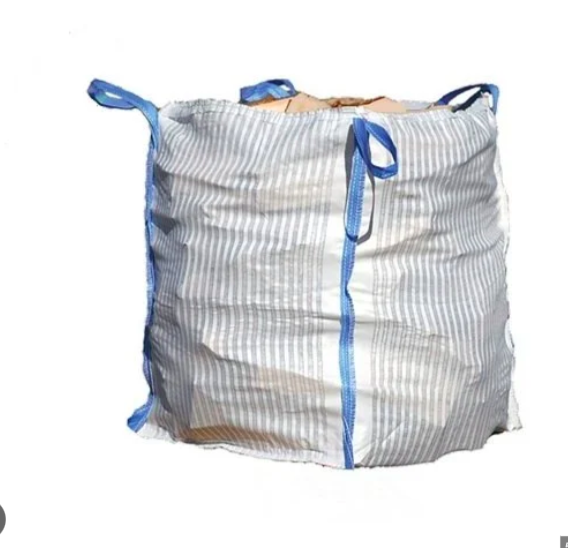

Vorix Packaging's Ventilated FIBC Bags are specially designed for the storage and transportation of fresh agricultural produce such as potatoes, onions, garlic, and other perishable products. Manufactured using ventilated woven polypropylene fabric, these bags promote airflow, helping reduce moisture buildup and minimize the risk of spoilage during storage and transit.

Offering greater handling efficiency than conventional woven sacks, Ventilated FIBC Bags provide a reliable and cost-effective solution for agricultural supply chains.

Technical Specifications:

SWL: 500 kg – 2000 kg
Safety Factor: 5:1 or 6:1
Fabric: Ventilated Uncoated PP Fabric
Liner: Tubular / Shaped Options Available
Printing: Up to 4 Colors
UN-Certified Options Available

1 & 2 LOOP (FIBC BAG)

Vorix Packaging's 1 & 2 Loop FIBC Bags offer a cost-effective and efficient solution for bulk material handling. Manufactured from tubular woven polypropylene fabric with integrated lifting loops, these bags provide excellent strength while reducing stitching requirements and production costs.

Widely used in the agriculture, mining, and construction industries, these bags can be supplied with liners for added moisture protection and colored loop sleeves for easy product identification.

Technical Specifications:

SWL: 1000 kg – 1500 kg
Safety Factor: 5:1 or 6:1
Fabric: Coated / Uncoated PP Fabric
Liner: Tubular, Shaped, or Suspended
Printing: Up to 4 Colors

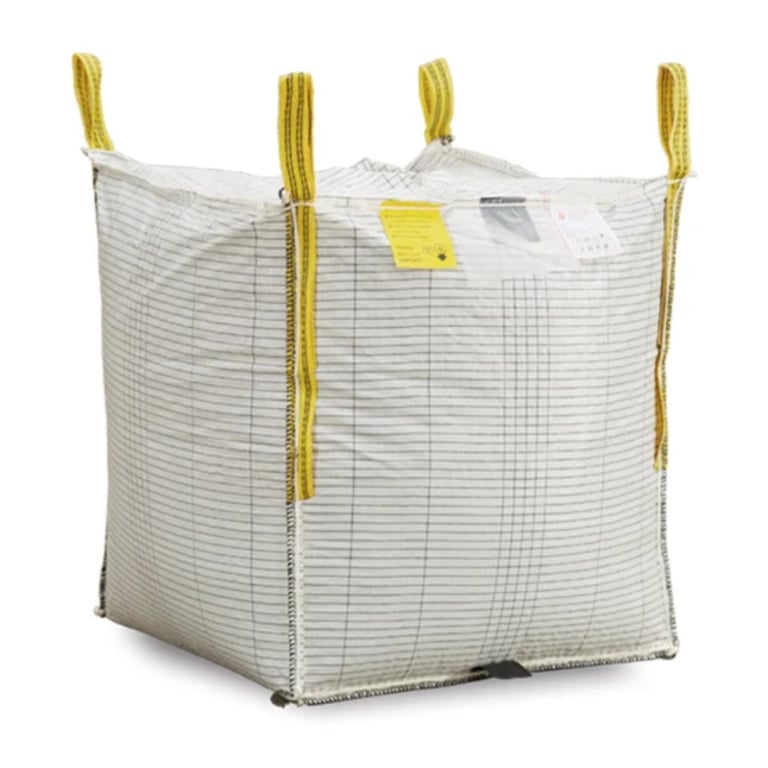

Vorix Packaging's Type C Conductive FIBC Bags are designed for the safe handling and transportation of flammable, combustible, and electrostatically sensitive materials. Manufactured with conductive threads woven into the polypropylene fabric, these bags safely dissipate static electricity when properly grounded, helping reduce the risk of ignition in hazardous environments.

Ideal for the chemical, powder, and industrial processing sectors, Type C Bags provide a reliable solution for safe bulk packaging and handling.

Key Features:
